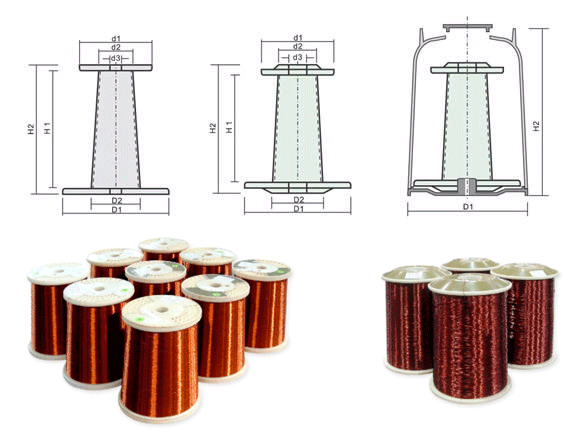

规格 | 平均容量 (漆包线)(kg) |
尺寸(mm) | ||||||
---|---|---|---|---|---|---|---|---|
d1 | D1 | d2 | D2 | d3 | H1 | H2 | ||
PT-2(PCZ115) | 2 | 105.5 | 115.5 | 60.5 | 67.5 | 20.5 | 150.4 | 170.0 |
PT-4(PCZI40) | 4 | 124.3 | 140.5 | 74.5 | 86.5 | 26.5 | 170.4 | 200.0 |
PT-10(PCZI80) | 10 | 160.3 | 180.5 | 96.5 | 110.5 | 30.5 | 200.4 | 230.0 |
PT-15(PCZ200) | 15 | 180.3 | 200.5 | 96.5 | 110.5 | 30.5 | 200.4 | 230.0 |
PT-25(PCZ230) | 25 | 215.3 | 230.5 | 110.5 | 130.5 | 32.5 | 250.4 | 280.0 |
PT-60(PCZ300) | 60 | 269.8 | 296.8 | 150.8 | 178.8 | 45.5 | 350.0 | 400.0 |
PT-45(A250) (PCZ250) | 45 | 236.0 | 250.0 | 140.0 | 160.5 | 100.5 | 335.0 | 400.0 |
PT-90(A315)(PCZ315) | 90 | 300.0 | 315.0 | 180.0 | 200.0 | 100.5 | 425.0 | 500.0 |
PT-200(A400)(PCZ400) | 180 | 375.0 | 400.0 | 225.0 | 250.0 | 100.5 | 530.0 | 630.0 |
PT-270(PCZ460) | 250 | 435.0 | 460.0 | 255.0 | 280.0 | 100.5 | 528.0 | 628.0 |

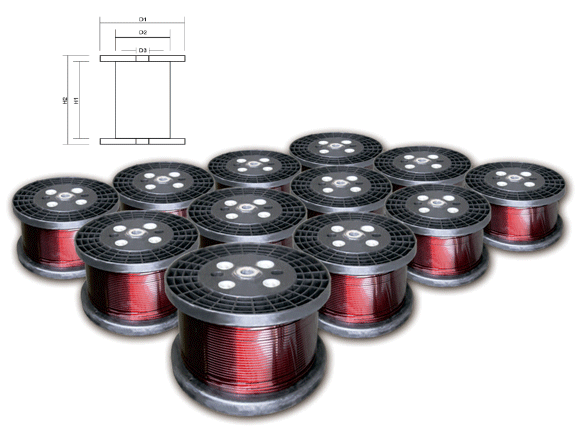

规格 | 尺寸(mm) | ||||||
---|---|---|---|---|---|---|---|
D1 | D2 | D3 | H1 | H2 | |||
PC63 | 63 | 40 | 11 .1 | 49.15 | 63 | ||
PC80 | 80 | 50 | 16.2 | 64.15 | 80 | ||
PC100 | 100 | 63 | 16.2 | 80.20 | 100 | ||
PC125 | 125 | 80 | 16.2 | 100.20 | 125 | ||
PC160 | 160 | 100 | 22.2 | 128.20 | 160 | ||
PC200 | 200 | 125 | 22.2 | 160.30 | 200 | ||
PC250 | 250 | 160 | 22.2 | 160.40 | 200 | ||
PC500 | 500 | 315 | 36.5 | 180.50 | 250 | ||
PC220 | 220 | 110 | 40.5 | 155.00 | 185 |
