公司先后从德国、奥地利、意大利等国引进先进的拉丝、漆包生产设备,是国内第一条最高端、最先进的特种漆包线生产线。 MAG漆包生产线是目前国际上最先进的漆包生产线之一,具有优良的稳定性和可靠性。全部采用在线拉丝、模具涂漆、全电脑控制工艺参数、在线检测、计算机模拟排线等。该生产线自动化程度高,能实现自动断线停车、自动供漆、自动分线、自动换线等功能。涂漆方式为三涂层结构,可以按用户的各种特殊需求开发相应的漆包线产品。

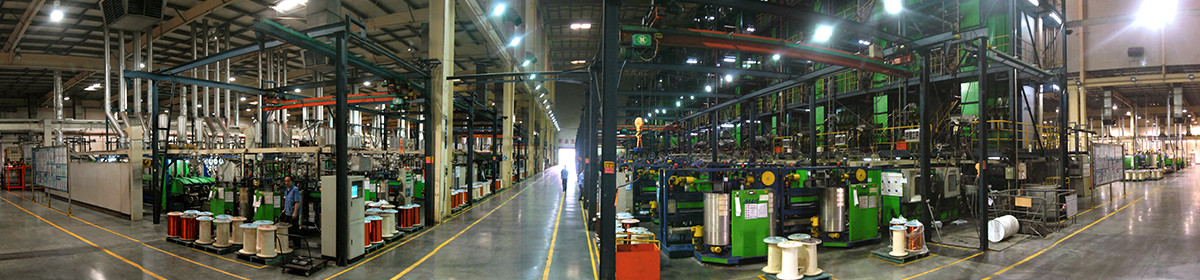

        At present, MAG wire enamel product line is one of the most developed wire enamel product lines in the world. It possesses superior stability and reliability. It wholly adopts in-line wire drawing, mould paint coating, totally computer-controlled processing parameter, on-line measurement, and winding displacement by computer modeling etc. This product line is of high automation,and can automatically power off when the wire is broken, automatic enameling, automatic line parting, automatic line changing etc. The paint coating is in the way of three-coating-layer structure, and corresponding enamel wire products can be developed according to user's different kinds of particular deman。

设备参数及部分性能

设备参数:

设备型号:HF4 Equipment type: HF4
生产规格:0.2-0.5 mm Production specification: 0.2-0.5 mm
模具涂漆,三涂层 Mold coating, three-layer coating
设备型号:HF5 Equipment type: HF5
生产规格:0.5-0.8 mm Production specification: 0.5-0.8 mm
模具涂漆,三涂层 Mold coating, three-layer coating
设备型号:HF6 Equipment type: HF6
生产规格:0.5-1.2 mm Production specification: 0.5-1.2 mm
模具涂漆,三涂层 Mold coating, three-layer coating
设备型号:VF6 Equipment type: VF6
生产规格:0.5-2.0 mm Production specification: 0.5-2.0 mm
模具涂漆,三涂层 Mold coating, three-layer coating
设备型号:VF7 Equipment type: VF7
生产规格:1.0-4.0 mm Production specification: 1.0-4.0 mm
模具涂漆,三涂层 Mold coating, three-layer coating
设备型号:VL8 Equipment type: VL8
生产规格:5-80 mm2 Production specification: 5-80 mm2
模具涂漆,三涂层 Mold coating, three-layer coating



在线连拉机 continuous wire-drawing machine
清洗过滤装置 Cleaning and filtration device
自动分线、自动换线、计算机模拟 Automatic wire cutting, automatic wire changing
排线 and wire arranging through computer simulation
电脑控制生产过程 Computer controlled production process
高压针孔检测装置 High pressure pinholes testing device
M85德国进口大拉机 M85 heavy wire drawing machine imported from Germany
最大进线:8mm Max.inlet wire diameter: 8mm
生产规格范围:1.15—4.5mm Production specification: 1.15-4.5mm
拉丝模数:13道 Number of wire drawing die: 13 dies
电阻式连续退火,大容量成圈收线
最大收线容量达2.5吨
Electric resistance continuous annealing. Spool wire in big capacity. Max capacity of spool reaches 2.5 tons
EH-50/4 德国进口轧拉机 EH-50/4 heavy wire rolling and drawing machine imported from Germany
最大进线:200mm2 Max.inlet wire diameter:200mm2
生产规格范围:5—140mm2 Production specification: 5-140mm2
拉丝模数:4道 Number of wire drawing die: 4 dies
无滑动连续式拉丝机,可生产圆铜
线、扁铜线、电车线等
Nonslip wire drawing machine,Can produce round 、rectangular、trolley wire
